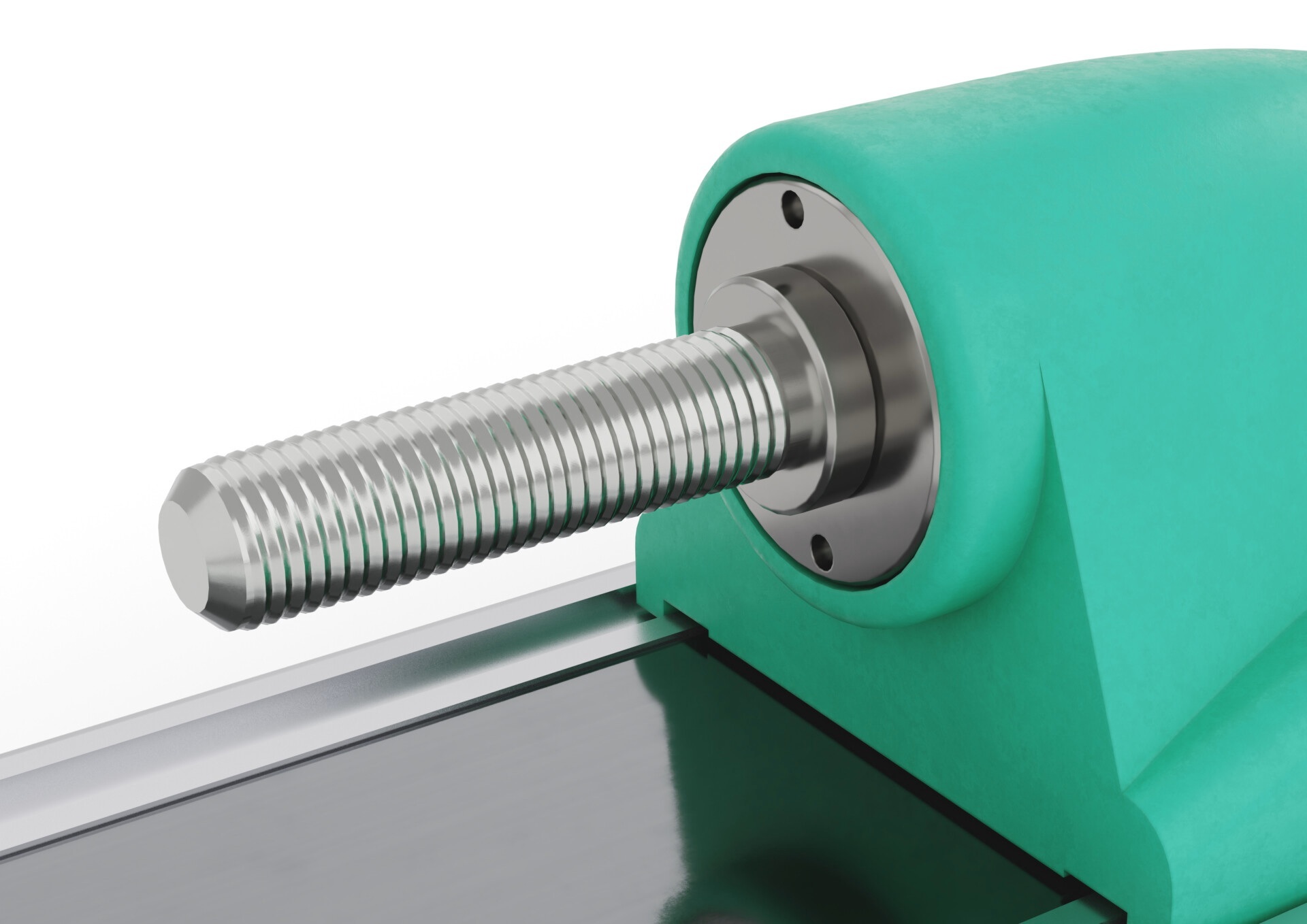

Rodless Rectilinear Displacement Transducer ( 0 -100mm), PK-M-0100-XL0327 0000X000X00

The improved transducer ensures high reliability with simplified installation, play-free mechanical linkage, and IP40 protection.

Main features

  • The transducer has been improved in order to guarantee greater reliability under all conditions

  • Mechanical linkage using joint with take up of play, M5 thread

  • Installation is made simpler by the absence of electri cal signal variation in output, outside the Theoretical Electrical Stroke

  • The new grooves provide an excellent alternative to the usual system of fastening with brackets

  • Ideal for applications on plastic injection presses, vertical presses, and on many other processing machines

₹5000.00 (Incl GST)

Out of Stock

Download Datasheet (PDF)

The improved transducer is designed to ensure greater reliability under all operating conditions. It features a mechanical linkage with a joint that compensates for play and uses an M5 thread, making it robust and adaptable. Installation is simplified thanks to the absence of electrical signal variations outside the Theoretical Electrical Stroke, ensuring consistent performance and ease of setup.

Additionally, the inclusion of new grooves offers a superior alternative to traditional bracket-based fastening systems, enhancing flexibility in mounting. With its IP40 protection grade, the transducer is ideal for demanding applications such as plastic injection presses, vertical presses, and a wide range of other industrial processing machines.

Useful electrical stroke (C.E.U.)

 from 0 to 100 mm

Independent linearity (within C.E.U.)

± 0.05%

Resolution

infinite

Repeatability

0.01mm

Electrical connections

  PK M – DIN43650 4-pin connector
PK B – DIN43322 5-pin connector

Protection

IP40

Displacement speed

≤ 10m/s

Displacement force

≤ 1.2 N

Displacement force

≤ 2N IP60 version
≤ 10N IP65 version

Vibrations

5…2000Hz, Amax =0,75 mm amax. = 20 g

Shock

50 g, 11ms

Acceleration operative

200 m/s2 max (20g)

Tolerance on resistance

± 20%

Recommended cursor current

< 0,1 μA

Maximu cursor current

10mA

Maximum applicable voltage

60V

Electrical isolation

>100MΩ at 500V=, 1bar, 2s

Dielectric strength 1bar

< 100 μA at 500V~ ,50Hz, 2s,

Dissipation at 40°C (0W at 120°C)

  3W

Temperature coefficient of the resistance

-200…+ 200 ppm/°C

Actual Temperature Coefficient of the output voltage

≤ 5ppm/°C typical

Working temperature

-30…+100°C

Storage temperature

-50…+120°C

Case material

Anodised aluminium Nylon 66 G 25

Mounting

Brackets with variable longitudinal axis with M6 screw ISO4017-DIN933
